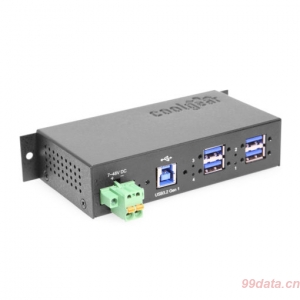

Coolgear 4 Port Managed USB 3.2 Gen 1 Hub w/ 15KV ESD Surge Protection


查看大图

Coolgear 4 Port Managed USB 3.2 Gen 1 Hub w/ 15KV ESD Surge Protection

Industrial Grade | +7~48V DC Input | Surface Mountable | DIN Rail | 5 Gbps | Screw Lock

  • 型  号:CG-4PU3MGD
  • 品  牌:CoolGear
  • 计量单位:
  • Advanced Protection: The 4-port USB 3.2 Gen 1 hub protects your device with advanced ESD protection. Built-in 15kV ESD surge protection offers you security and assurance that your connected devices will be protected.
  • Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
  • Port Management Software: Control each individual ports’ status, turn bus power on/off, and even reset the entire hub through the hub’s management software which supports Windows, Mac, and Linux operating systems
  • Upstream: 1 USB port, Type B connector, Screw-lock type
  • Downstream: 4 USB ports, Type A connectors, Screw-lock type
  • LED Indicators: 4 LEDs for each downstream port to indicate the current bus
  • Mounting Options: Wall, Surface, and DIN Rail
  • Supply Current: 1.5A max. per channel

Introduction:

The CG-4PU3MGD is a managed USB 3.2 Gen 1 (or commonly called USB3.0) hub which is designed to provide rich unique features for industrial applications. It provides an instant expansion of 4 USB 3.2 Gen 1 downstream facing ports and keeps the excellent reliability and compatibility with all USB 3.2, US B2.0 and 1.1 existing devices.

The hub complies with the Universal Serial Bus (USB) Specifications Revision 3.2 Gen 1 and work up to 5Gbps. It accepts wide range input power from 7~48 VDC. Its downstream facing ports support USB Battery Charging Specification v1.2 (SDP, CDP, DCP) as well as some Vendor Specific Charging Modes e.g. Apple 2.4A , Samsung.

The CG-4PU3MGD is supplied with the managing software utilities which can turn on/off the bus power of each downstream device or even reset the entire hub. It also can save the designated state to its flash memory and read it back as the initial state of its next power up cycle. Different utilities were supported for different operating systems such as Windows, intel x86-64 and ARM based Linux.

Since the USB is the most popular and scalable expansion bus for the modern computers. With the integrated software and hardware support, the CG-4PU3MGD provides an ideal solution to add your USB devices and value immediately and save your investment.

Managing Software

The CG-4PU3MGD software package contains several managing software utilities which support different platforms allowing better control over each individual ports’ status. A GUI (Graphical User Interface) and console command prompt utilities for all major Microsoft Windows and Mac OS. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different language such as C#, C++, VB, Python or even a PHP server scripting language.

Features:

  • Compliant with USB Specification 3.2 Gen 1
  • Metal Case, DIN Rail and wall mountable
  • Software Manageable Bus power for each Port
  • Supports software utility for Windows, Linux
  • Provides 4 Downstream USB 3.2 Gen 1 Facing Ports
  • Provides 4 LEDs Indicating each bus power states
  • Supports USB Screw-Lock Cables and Terminal Blocks
  • Supports 5Gbps (Super-speed), 480Mbps (High speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
  • Supports 15KV ESD Level 4 Protection for Each Port
  • Supports +7~48V DC Wide Range Input Power
  • Supports USB Battery Charging v1.2 : CDP, DCP modes

Note: The last USB port of this hub (Port 4) does NOT support USB 2.0 / 1.1 devices. It is used to communicate with managing utilities. However, it still supports USB 3.2 Gen 1 devices.

Package Contents:

  • 4 Port Managed USB 3.2 Gen 1 Hub
  • USB-A to Screw Lock USB-B Cable
  • 2-Pin Terminal Block
  • DIN Rail Clips
  • Screw Pack

Product Specifications

SHIPPING WEIGHT

1.05 lbs

SHIPPING DIMENSIONS

9.649 × 6.655 × 2.249 in

UPC

045079163096

COLOR

Black

DOWNSTREAM USB PORTS

4 Type-A Female USB

UPSTREAM USB PORTS

1 Type-B Female USB

OPERATING TEMPERATURE

0°C to 60°C (32 to 140°F)

ITEM WEIGHT

0.569 lbs

ITEM DIMENSIONS (L × W × H)

6.41 × 2.16 × 1.22 in.

STORAGE TEMPERATURE

-20 to 75°C (-4 to 167°F)

INPUT VOLTAGE

+7~48V DC

MAX DATA TRANSFER RATE

5Gbps

EXTERNAL POWER REQUIRED

Yes

ALTITUDE

Up to 2000m

CHIPSET

GL 3523

CERTIFICATIONS

RoHS

ESD PROTECTION

15KV Surge Protection for Each Port

COUNTRY OF ORIGIN

Taiwan

HUMIDITY

5% ~ 95% (non-condensing)

IDLE CONSUMPTION

1.26mA @ 12V Terminal Power

LED INDICATORS

Port Status, Power

MANAGING SOFTWARE UTILITIES

cusba: ARM Based Linux Controller Utility,

CUSBC: Windows Console Command

Control Utility, cusbi: Intel x86-64 Based Linux Control

 Utility, USBCTL: Windows GUI

MATERIAL OF CONSTRUCTION

Galvanized Steel

MOUNTING STYLE

Surface / Wall Mount, Din-Rail Mount

OS SUPPORT

OS Independent; No Additional Drivers Required

OVER CURRENT PROTECTION

Y

PACKAGE CONTENTS

2-Pin Terminal Block, DIN Rail Clip(s), Hub,

Screw Pack, USB-A to Screw Lock USB-B Cable

POWER SOURCE

2-Pin Terminal Block, AC Adapter Not Included

WARRANTY

1 year from date of purchase

USB TYPE

USB 3.2 Gen 1

SCREW LOCK COMPATIBLE

Yes

PER USB PORT CURRENT

1.5 A

CHARGING PROTOCOLS

Apple 2.4A, BC 1.2, Charging Downstream Port (CDP),

 Dedicated Charging Port (DCP), Samsung
