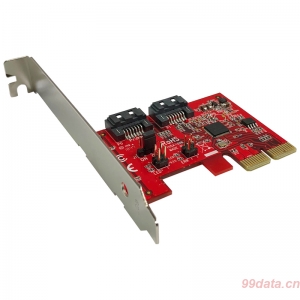

Lycom PE-151FR 2口SATA3 6Gb PCIe阵列卡硬件RAID1/0可做系统盘


查看大图

Lycom PE-151FR 2口SATA3 6Gb PCIe阵列卡硬件RAID1/0可做系统盘

Hardware RAID SATA III 2Ports PCIe Adapter support Hardware RAID 0 / RAID 1 / SPAN / Normal (non-RAID) Modes!

  • 型  号:PE-151FR
  • 品  牌:Lycom
  • 计量单位:

FEATURES



o        6Gbps SATA III PCIe 2.0 2Lane Host Adapter

o        Hardware RAID controller to offload host CPU for max performance

o        Fully compliant with Serial ATA specifications 3.2

o        Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps

o        Supports H/W RAID 0 / RAID 1 / SPAN (Big Disk) and Normal (non-RAID) modes for HDD and SSD

o        Non-RAID mode supports Optical Drive, Blu-Ray Drive and SATA Command-based Port Multiplier

o        SATA Hot-plug capability

o        Supports ATA and ATAPI commands

o        Supports Native Command Queuing (NCQ)

o        Supports TRIM

o        OS Built-in AHCI inbox driver natively in Windows 10, 8.1, 7.0, Server 2008, 2008R2, 2012R2, Linux, Mac 10.9.1 and later, no additional driver required

o        Legacy BIOS on board support OS Booting on Windows and Linux

o        BIOS <Ctrl-R> Configuration Utility support RAID Configuration on Windows and Linux

o        Provides Windows & Mac GUI software to configure and Monitor the status of Hardware RAID and support max two RAID groups

o        Low Profile PCIe Form Factor

o        Regular size PCIe bracket on board and Low Profile bracket included

o        Two Pin headers on board for Device LED connection

o        Require an empty PCIe x2 or x4 or x8 or x16 slot in computer

o        Supports operating temperature range: +0 ~ +85 ºC

o        Fully RoHS compliant
