FEATURES

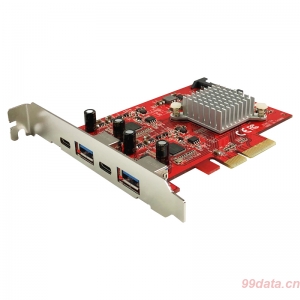

o       Two ASM3142 chipsets and one PCIe Gen3 Packet Switch Controller to 4Ports 10Gbps USB3.1 Gen2

o       PCIe x4Lane Host Adapter with PCIe 3.0 x2 controllers and signals

o        2x USB-C and 2x USB-A downstream receptacle ports support individual 10Gbps speed each port

o        Each USB 3.1 Type C port adapt 5V3A bus power

o        Each USB 3.1 Type A port adapt 5V2A bus power

o        Compliant with Universal Serial Bus 3.1 Specification Revision 1.0

o        Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1

o        Compliant with USB Attached SCSI Protocol Specification 1.0

o        All USB ports can handle SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction

o        Support USB3.1, USB3.0 and USB2.0 devices

o        Compliant with PCI Express Specification 3.0

o        When optional 15Pin SATA power installed, 4x USB 5V bus A power from PC power supply sufficient 12V instead of mainboard PCIe 12V Max 25W

o        Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance

o        Mac10.8 to 10.10, Mac10.12, Windows 10, Win8, 8.1, Server 2012, Linux kernel 2.6.31 and later OS in-box USB driver natively support UASP, no additional driver required

o        Mac 10.11 in-box driver Not support USB3.1

o        Fully RoHS compliant
