FEATURES

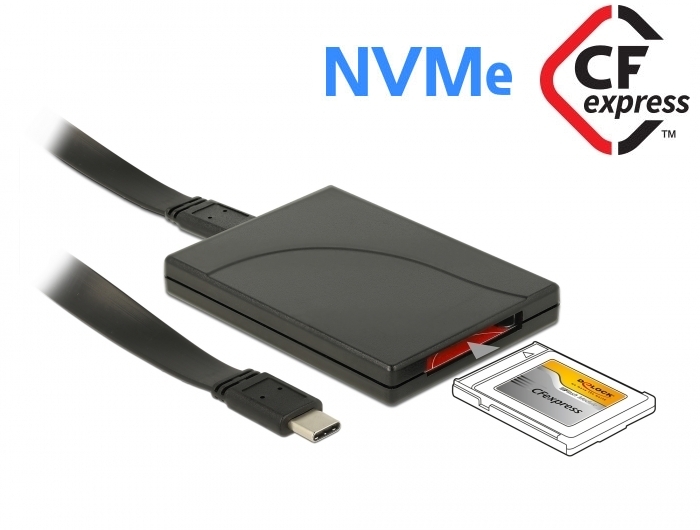

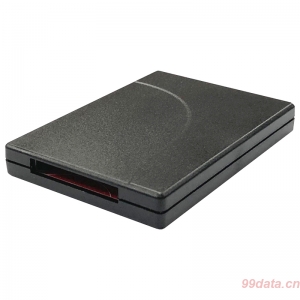

o        Supports CFexpress PCIe x2 type-B based SSD

o        USB 3.1 Type-C upstream connector on board

o        Directly to USB 3.1 Type-C Host Port via Type-C cable

o        Compliant with PCI Express Revision 3.1a

o        CFexpress Push Push connector on board

o        Supports TRIM

o        Supports Hot-Swap of CFexpress & USB

o        Compliant with NVM Express 1.3

o        Compliant with USB 3.1 Gen2 Specification

o        Compliant with USB Attached SCSI Protocol (UASP) Specification (Revision 4)

o        Supports USB 3.1 Gen2 power saving mode

o        Supports SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps) transaction

o        PCBA and CFexpress SSD powered by USB3.1 Type-C bus max 5V3A

o        Mac10.8 to 10.10, Mac10.12, Windows 10, Win8, 8.1, Server 2012, Linux kernel 2.6.31 and later OS in-box USB 3.1 driver natively support, no additional driver     required

o        An available Type-C host port required, Type-A host 5V 500mA bus power not enough for CFexpress SSD

o        Fully RoHS compliant
