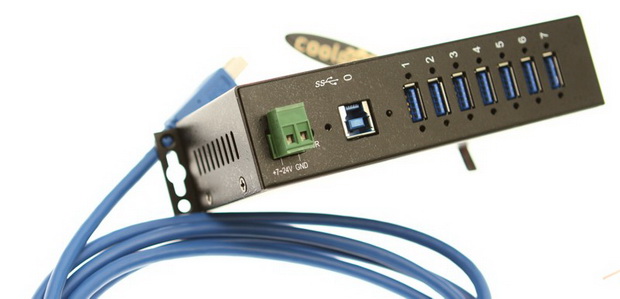

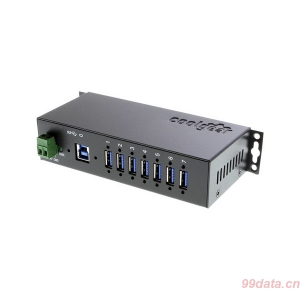

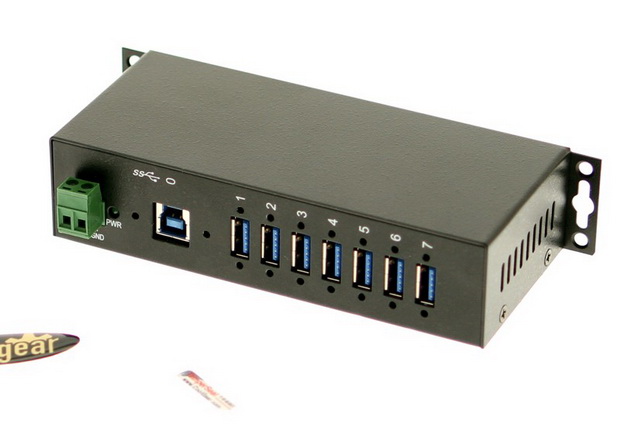

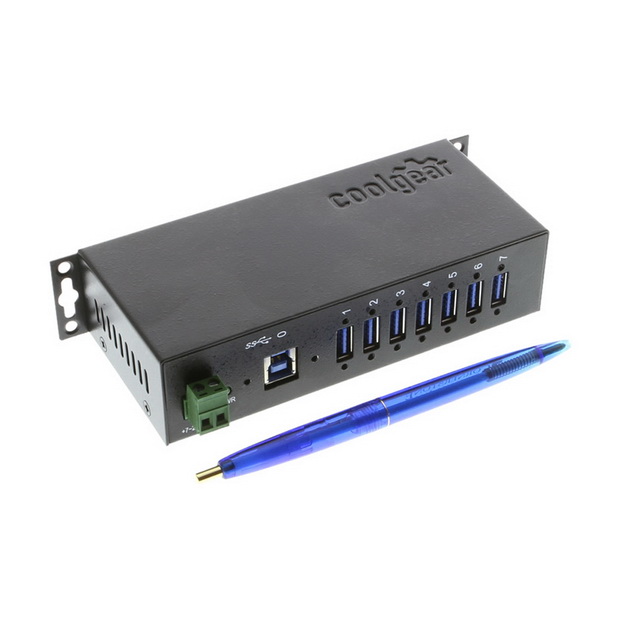

Coolgear USBG-7U3ML USB3.0 7口工业级Hub 金属封装


查看大图

Coolgear USBG-7U3ML USB3.0 7口工业级Hub 金属封装

7口USB 3.0金属封装工业级hub,可以通过USB数据线供电,还可以通过+12V-24V DC直流电源供电(电源适配器需要另外购买)。可以连接多至7个外接USB 设备,遵从 Universal Serial Bus 3.0 (USB 3.0)产品规范(版本1.0)。

  • 产品重量:200.000 克(g)
  • 型  号:USBG-7U3ML
  • 品  牌:CoolGear
  • 计量单位:

Coolgear USBG-7U3ML USB3.0 7口工业级Hub 金属封装

7USB 3.0金属封装工业级hub,可以通过USB数据线供电,还可以通过+12V-24V DC直流电源供电(电源适配器需要另外购买)。可以连接多至7个外接USB 设备,遵从 Universal Serial Bus 3.0 (USB 3.0)产品规范(版本1.0),兼容支持USB 1.1 USB 2.0 产品规范。为您提供稳定的USB连接。

  • 可以使用带螺钉锁紧的USB 3.0数据线,让连接更牢固,防止意外断开
  • 附带DIN-Rail 安装套件,可安装到DIN-Rail 安装环境
  • 遵从USB 3.0产品规范,传输带宽可达 5Gbps
  • 可连接多至7USB 3.0 外接设备,兼容支持USB 2.0/1.1 产品规范

The USBG-7U3ML is an Industrial USB 3.0 7-Port Hub that complies with the Universal Serial Bus 3.0 (USB 3.0) Specifications Revision 1.0 and is capable of up to 5Gbps. It supports voltage of +12V to 24V DC output and provides 7 downstream facing ports with standard Type-A USB 3.0 connectors. The USBG-7U3ML USB 3.0 7-Port Industrial Hub also supports screw lock features for both upstream (USB type B) and downstream (USB type A) connectors with the screw lock USB cables, which prevent accidental disconnection.



With built-in single chip USB 3.0 controller, the USB 3.0 7-Port Hub  is backward compatible either when any one of downstream port is connected to an USB 1.1 or USB 2.0 compliant device, or when the upstream port is connected to a USB 1.1 or USB 3.0 compliant host.



The USBG-7U3ML Industrial USB 3.0 7-Port metal, mountable hub also provides a unique feature to work in the bus-powered mode without an external AC power adapter. It is very convenient for light power consumption USB devices to function in this mode without the external power supply. The external DC jack is used for self-powered mode if you need more power on the 7 downstream ports.





Additional Features:

System:

  • For Systems with USB 3.0, USB 2.0 or USB 1.1 Ports
  • USB 3.0 ports
  • Provides 7 USB 3.0 downstream ports which managing up to 5Gbps:
  • Compliant with USB 3.0 Specifications Revision 1.0
  • Voltage is +12V to 24V DC output
  • Provides 7 Downstream Facing Ports for Super-speed, High-speed, Full-speed and Low-speed traffic
  • 1 Upstream Port for Super-speed, High-speed and Full-speed traffic
  • Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed
  • Supports USB Screw-lock Mechanism for Secure Cable Connection
  • Supports Self-powered and Bus-powered Mode
  • Supports up to 900mA USB Bus Power for Each Down-stream Port
  • Dimensions: 6.37″(L)x2.60″(W)x1.42″(H) (16.20×6.60×3.61 cm)
  • Supports Downstream Port Status with LED
  • Supports Battery Charging Protocol Rev 1.2

USB Devices:

  • Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, Pen-drives, SATA enclosures, joystick, virtual reality helmet, modem, PBX and many more

 OS Support:

  • Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, and Windows 8
  • Linux and Mac OS 10.X

I/O Hardware:

  • Supports 7 external USB 3.0 Type-A connectors and 1 Type-B Upstream connector, supports screw lock features with screw lock type cables
  • Supports 1 DC Jack and 1 2-pin Terminal Blocks for external power input

Form Factor:

  • 5.68”(L)  x 2.55”(W)  x 1.43”(H)
  • NOTE: CABLES NOT INCLUDED, please see our cable category for Screw Lock USB Cables

External Power supplies are sold separately:

Environmental Specifications:

  • Operating Temp: 0 to 55°C (32 to 131°F)
  • Operating Humidity: 5 to 95% RH
