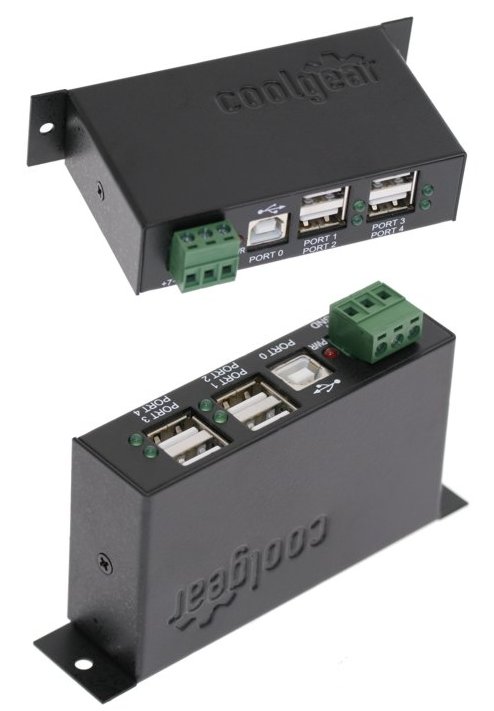

Coolgear USBG-4U2ML  USB 2.0 4口工业级Hub 金属封装

 USBG-4U2ML工业级4口USB 2.0 Hi-Speed金属 Hub为您提供稳定的USB设备连接，提供4个高速 USB 2.0 接口，用于连接各种USB设备，工业级金属封装为您提供更高可靠性。.

• 遵从USB 2.0 High-Speed规格的工业级金属Hub
• 兼容支持 USB 1.1/1.0
• 通过级联的方式，可以连接127个USB设备
• 内置 NEC uPD720114 USB 2.0 Hub 控制器

USBG-4U2ML Product Description

The USBG-4U2ML Industrial 4-Port USB 2.0 Powered Hub is a Hi-Speed USB 2.0 hub that is backward compatible with USB 1.0 and 1.1. It provides an out of the box industry standard that allows connection of up to four USB peripherals or devices to your USB ready PC or Mac. The USBG-4U2ML Hub incorporates Diagnostic LEDs providing port status for each port and power status.

Designed to be compact and provide quick and easy access, the Industrial 4-Port USB 2.0 hub provides four type “A” downstream ports for connection to additional USB peripherals, devices, or other USB hubs. A single type “B” upstream port connects the USBG-4U2ML to the host computer or another USB hub. This USB 2.0 Hub enables up to 127 devices for connection by cascading multiple hubs. Configuration of the hub is managed by the operating system once connected, the USBG-4U2ML hub operates seamlessly with both Microsoft Windows and Apple Macintosh Operating Systems.



As a standard USB hub, the USBG-4U2ML buffers USB data from any attached peripheral in compliance with USB specifications to provide an invisible extension of the USB bus. Supporting both low speed (1.5Mbps and 12Mbps) and Hi Speed (480Mbps) devices, each port creates a bridge between the peripheral and host computer.

Additional Features:

• Compliant with USB Specification Revision 2.0
• Built-in NEC uPD720114 USB 2.0 Hub Controller
• Supports High-speed and or Full-speed Packet
• Protocol Sequencer for Endpoint 0/1
• Provides 4 Downstream Facing Ports
• Supports 480Mbps, 12Mbps and 1.5Mbps Speed
• One Transaction Translator per Hub and
• Supports 4 Concurrent Non-periodic Transactions
• Supports Self-powered and Bus-powered Mode

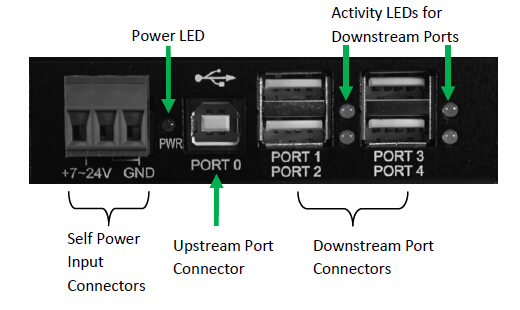

• Supports Downstream Port Status with LED
• USB 2.0 ports
• Provides 4 USB downstream ports which managing up to 480Mbps:
• Compliant with USB Specifications 2.0
• High-speed or Full-speed Packet Protocol Sequencer for Endpoint 0/1
• One Transaction Translator per Hub and Supports 4 Concurrent Non-periodic Transactions
• Supports Self-powered and Bus-powered Mode

Device Support:

• Supports Downstream Port Status with LED USB Devices Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, joystick, virtual reality helmet, modem, PBX and many more USB devices I/O Hardware
• Supports 4 external USB 2.0 Type-A connectors and 1 Type-B Upstream connector.

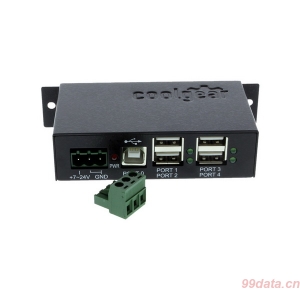

• Supports a 3-pin Terminal Block Connector for external power input from AC adapter.

Environmental:

• Operating Temp.: 0 to 55C (32 to 131 F)
• Storage Temp: -20C to 85C (-4 to 185 F)
• Operating Humidity: 5 to 95% RH

OS Support:

• Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7, and Windows 8
• Linux and Mac OS 10.X

Form Factor:

• 4.50(L)x2.26(W)x1.03(H) (11.45×5.73×2.63 cm)

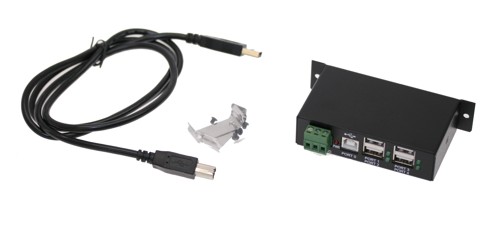

Package Contents:

• Industrial 4-Port USB 2.0 Powered Hub
• 3-foot Hi-Speed USB 2.0 certified A to B cable
• Mounting Brackets
