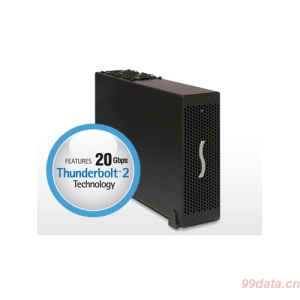

Sonnet Echo Express III-D Desktop Thunderbolt 2 雷电接口转PCIe 2.0 扩展箱


Sonnet Echo Express III-D Desktop Thunderbolt 2 雷电接口转PCIe 2.0 扩展箱
Sonnet Echo Express III-D Desktop Thunderbolt 2 雷电接口转PCIe 2.0 扩展箱

查看大图

Sonnet Echo Express III-D Desktop Thunderbolt 2 雷电接口转PCIe 2.0 扩展箱

为您的具有Thunderbolt雷电接口的Mac电脑添加3个PCI Express 2.0插槽，可以使用专业的视频采集卡、音频卡、8GB光纤卡、10GB的万兆网卡、6GB的miniSAS卡、RAID卡。

  • 产品重量：900.000 克(g)
  • 型　　号：ECHO-EXP3FD
  • 品　　牌：Sonnet
  • 计量单位：个

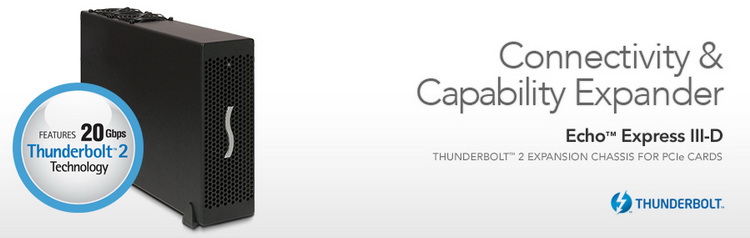

Echo Express III-D Desktop Thunderbolt 2 雷电接口 转 PCIe 2.0 扩展箱

Echo Express III-D Desktop Thunderbolt 2雷电接口扩展箱，让您通过Mac电脑上的Thunderbolt雷电接口可以连接3个高性能的PCI Express 2.0转接卡，让您新的iMac、Macbook Air、Macbook Pro、Macmini、Macmini Server都可以使用全尺寸专业的视频采集卡、音频卡、8GB光纤卡、10GB的万兆网卡、6GB的miniSAS卡、RAID卡，承担以前只有Mac Pro才可能承担的专业设计任务。


Echo Express Pro 支持3个标准宽全长卡，或者一个全宽全长卡。内置300W 电源，还有一个为PCIe卡供电的内部电源接口，三个静音风扇确保散热效果。2个Thunderbolt 2雷电接口，可以为您的电脑级联连接6个外接设备。

兼容性

• Mac with Thunderbolt port

• Mac OS X 10.6.8 或更高版本

产品特性

• 连接专业的PCIe 转接卡–在集成Thunderbolt 雷电接口的电脑上使用高性能的PCIe转接卡，让您的电脑胜任更多专业工作；

• 为专业的音频与视频设计人员而设计－防震、便于携带；可与电脑主机同步开机与关机；高级温控变速风扇；内置专门为PCIe卡供电的接口；

• 2个Thunderbolt 2雷电接口，支持级联，可以连接6个外接设备；

• 包括1个 PCIe 2.0 x16 (x8 模式) 插槽，2个PCIe 2.0×8插槽，支持3个标准宽全长卡或者一个全宽全长卡；

兼容性列表，更多兼容性PCI-E卡有待您去发现

 Pro Audio 专业声卡



Lynx AES16e

Lynx AES 16e-SRC

Lynx AES16e-50

RME HDSPe Madi

RME HPSDe MADI FX

RME HDSPe RayDAT

RME HDSPe AIO

RME HDSPe AES

RME HDSPe PCI (with Multiface, Multiface II & Digiface)

 Ethernet Adapters (Gigabit) 千兆网卡





Small Tree GbE PEG1, PEG1F



Small Tree GbE PEG2, PEG2F



Small Tree GbE PEG4



Small Tree GbE PEG2G6I



Sonnet Presto Gigabit Pro PCIe

Ethernet Adapters (10 Gigabit) 万兆网卡



ATTO Fast Frame NS11, NT11

ATTO Fast Frame NS12, NT12

ATTO Fast Frame NS14

Myricom 10G-PCIE-8B-1S+E

Myricom 10G-PCIE2-8C2-2S+E

Small Tree 10GbE PETG2NDA, PETG2-CAT6, PETG2-CX4, PETG1SFP+, PETG2SFP+

Small Tree 10GbE PETG4NDA, PETG4SFP+

Small Tree 10GbE PETG6NDA, PETG6SFP+

Fibre Channel 光纤通道卡



Apple Dual-Channel 4Gb Fibre Channel PCIe Card(1)

Apple Quad-Channel 4Gb Fibre Channel PCIe Card

ATTO Celerity FC-81EN

ATTO Celerity FC-82EN

ATTO Celerity FC-84EN

Sonnet 8Gb Single Channel Fibre Channel Host Adapter PCIe 2.0

Sonnet 8Gb Dual Channel Fibre Channel Host Adapter PCIe 2.0

USB3.0/eSATA 扩展卡



Sonnet Tempo SATA 6Gb Pro 2-port

Sonnet Tempo SATA 6Gb Pro 4-port

Caldigit FASTA-6GU3 USB3.0 2-port and Esata 6GB 2-port

PCIe Bus Extender 扩展卡

Sonnet Express Bus Extender PCIe 2.0

SAS扩展卡



ATTO ExpressSAS H680 Adapter

ATTO ExpressSAS H6F0 Adapter

ATTO ExpressSAS H644 Adapter

ATTO ExpressSAS R680 RAID Adapter(2)

Sonnet 6Gb/s SAS/SATA RAID Controller(2)

PCI-E SSD 硬盘



OWC Mercury Accelsior PCIe R0

Sonnet Single/Dual SSD PCIe Adapter

Sonnet Pro Dual SSD PCIe Adapter

Video Capture/Processing 视频采集与编辑卡



Black Magic Intensity Pro

Black Magic Decklink 4K

Black Magic Decklink Quad

Black Magic Decklink HD Extreme 3D

Black Magic Decklink Studio

Black Magic Decklink Studio2

Black Magic Intensity Duo

Black Magic Decklink SDI

Storage(4)存储设备



Sonnet Fusion D400QR5/R400QR5(5)

Sonnet Fusion DX800RAID

Sonnet Fusion RX1600RAID

Tandberg Data LTO-2 - 5

Tolis TGSHH4S-EXT LTO-4 HH SAS Drive

Tolis TGSHH5S-EXT LTO-5 HH SAS Drive

Tolis TGSHH4S-LIB LTO-4 HH SAS Drive

Tolis TGSHH5S-LIB LTO-5 HH SAS Drive

Storage DNA Evolution D100

Storage DNA Evolution X100, X100-8, X100-24

Storage DNA Evolution X200, X200-24, X200-48

Storage DNA Evolution X400-48

Technical Notes

  1. Some older versions of the Apple/LSI Fibre Channel Card may not be compatible with Thunderbolt technology. Here's what we know:
    Compatible Versions: H3-250770-01D, L3-25077-00E, L3-25007-00G
    Incompatible Versions: L3-00137-01D
    Please send an email tosupport@sonnettech.comif you have another version that does or does not work. 330ºC maximum ambient operating temperature
  2. 30ºC maximum ambient operating temperature
  3. Single SSD in this chassis
  4. SAS LTO models used with compatible SAS card such as ATTO H680 or H644
  5. Recommended with Sonnet Tempo SATA 6Gb Pro 2-Port or Pro 4-port
  6. Not marked as compatible because the size of the card (height or length) does not fit the space available





Sonnet Thunderbolt Expansion Partners

Sonnet works closely with the following partners to ensure Thunderbolt compatibility for their products.


Adobe AJA Apple ATTO Avid Black magic design BlueFish 444 CalDigit Focusrite Fusion io

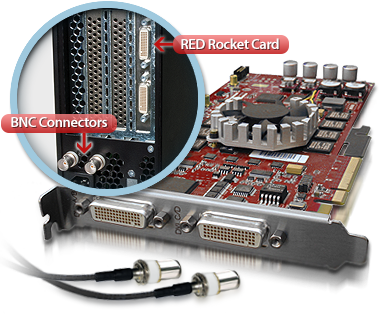

Lynx studio technology Matrox Myricom RED RME Small tree Softron media services Solid state logic StorageDNA
Tandberg data Tolis group Tools on air Universal audio
